TS 114
$5,790.00Rec. retail price incl. GST SKU: 970622501- Cylinder displacement452 cm³
- Net power at preset rpm Energy14.8hp
Product description

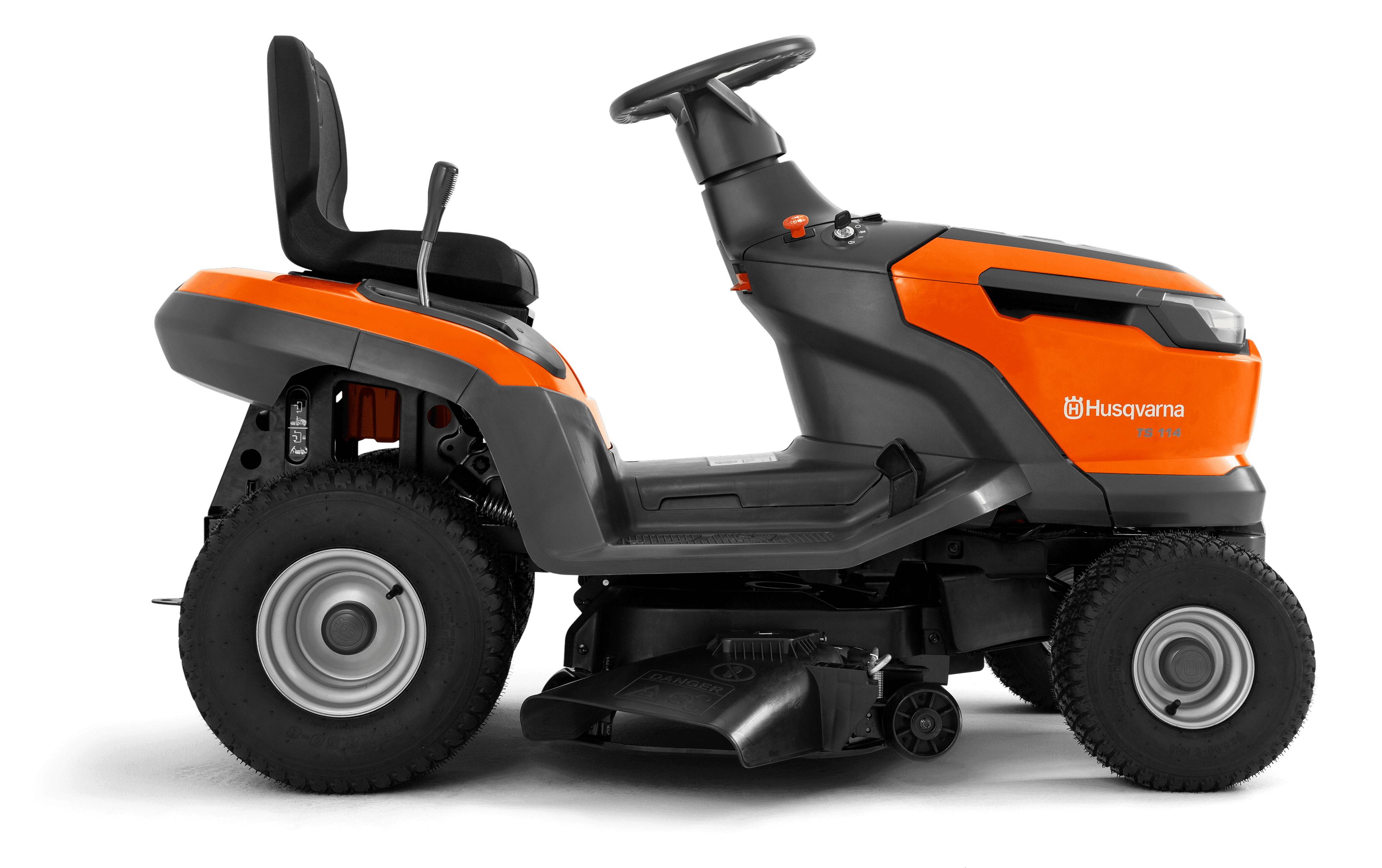

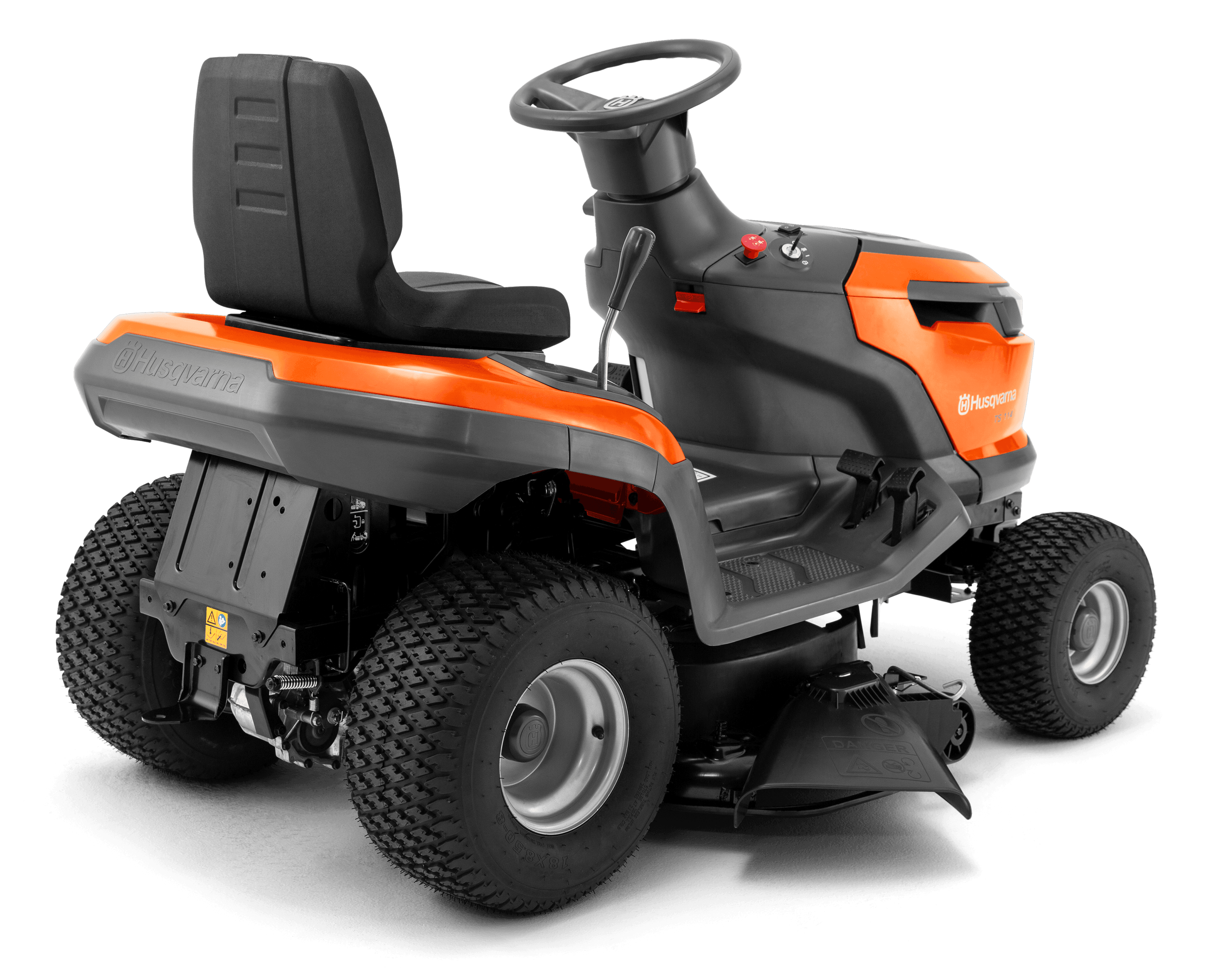

Purposely engineered for ease of use, this reliable garden tractor delivers an exceptional mowing experience on any large lawn – even in narrow passages. Achieve excellent results without straining your body thanks to its ergonomically placed levers, side-by-side pedals and spring-assisted cutting deck. Conveniently compact for optimised storage, maintenance and operation, enjoy trouble-free ownership and a perfectly cut lawn.
Product Information
Features (16)
Dual headlights
Dual headlights at the front.
Hour meter
Helps you having control over service and maintenance intervals.
Adjustable driver seat
Tool-less adjustment of seat position.
Ergonomic controls
Easy-access controls and plenty of leg room thanks to the adjustable seat.The spring assisted height adjustment cutting deck makes it easy to operate.
Side discharge cutting deck
Equipped with a 95cm side discharge cutting deck.
Anti scalp wheels
The cutting deck is equipped with anti-scalp wheels, which reduce the risk of scalping when cutting uneven lawns.
Compact design
Compact design for effortless navigation in narrow passages and easy storage while not in use.
ROS in start key
Safe and convenient access to the mow in reverse functionality.
Fuel level window
Fuel level window makes it easy to check the fuel level.
Dual pedal drive
Dual pedal drive for better drive control and easy, intuitive operation.
Towing hook included
Towing hook Included for multiple rear attachments.
Control levers on one side
Controls levers on one side make it easier to get in and out of the seat.
Electric engagement of cutting blades
Easy engagement of cutting blades; simply pull the switch on the control panel.
Pedal-operated hydrostatic transmission
Easy speed and direction control with pedal-operated hydrostatic transmission. Separate pedals for forward and reverse.
Turn key start
Turn key start
Lever-Mounted cutting height adjustment
Easy accessible cutting height adjustment for improved ergonomics. The spring-assisted cutting deck makes adjustment easier.
Specifications | Art No: 970622501 |
|---|---|
| Cutting width | 95 cm |
| Output shaft power | 14.8hp |
| Cylinder displacement | 452 cm³ |
| Weight (complete product w/o side packed articles) | 184 kg |
| Fuel tank volume | 6 l |
| Sound pressure level at operators ear | 83.4 dB(A) |
| Base machine, height | 110 cm |
| Base machine, length | 166.5 cm |
| Base machine, width | 92 cm |
| Base machine, width (chute down) | 119 cm |
| Battery capacity | 20 Ah |
| Battery voltage | 12 V |
| Blades | 2 pcs |
| Cutting height max | 100 mm |
| Cutting height min | 25 mm |
| Fuel consumption | 412 g/kWh |
| Fuel tank volume | 1.59 gal (US) |
| Net power at preset rpm | 2800 rpm |
| Net power at preset rpm Energy | 14.8hp |
| Oil capacity | 1.2 l |
| Sound power level, guaranteed (LWA) | 97.6 dB(A) |
| Speed forward max | 9 km/h |
| Speed reverse max | 5 km/h |
| Vibration level seat | 2.0 m/s² |
| Vibration level steering wheel | 5.6 m/s² |
| Wheelbase | 115 cm |
